Machine name and model:

(1) Machine name: Gantry type stir friction welding machine.

(2) Model: FSW-2230

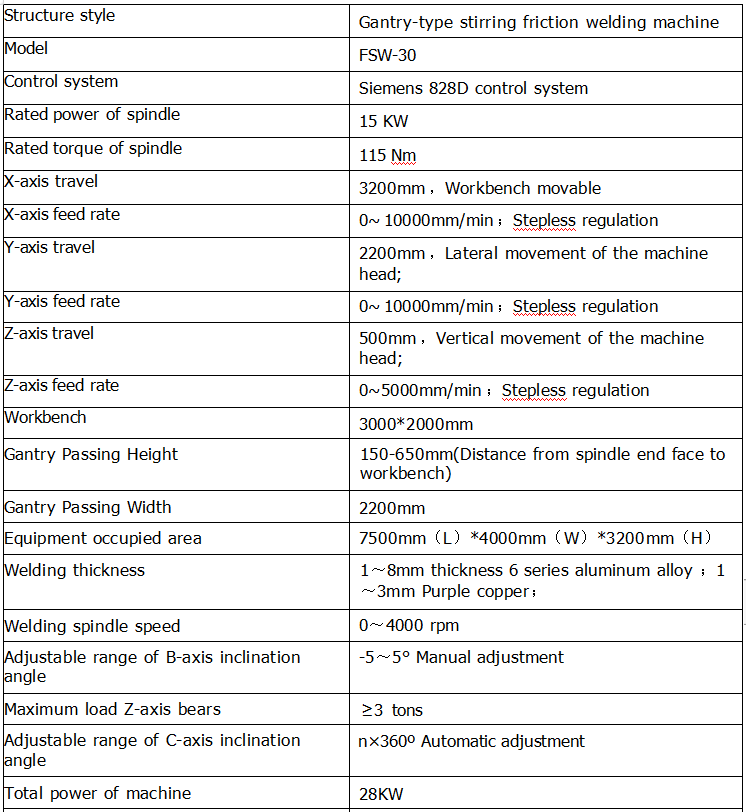

2. Machine feature

(1) The machine can achieve friction stir welding of 1XXX~7XXX series aluminum alloy materials;

(2) The maximum single pass welding depth of the equipment is 8mm, and the thickness is achieved by replacing different specifications of stirring heads to achieve a thickness between 1~8mm aluminum alloy connection;

(3) Accurate control of the welding position of the stirring head is achieved by adjusting the Z-axis;

(4) The equipment adopts Siemens control system from Germany, model 828D;

(5) The equipment operation has manual control interface and automatic control interface. Under the manual control interface, the operator can select the welding depth and length in real-time based on the on-site working conditions. In the automatic control interface, by setting relevant parameters such as weld position, insertion speed, delay time, maximum feed rate, welding length, etc, the welding process is performed automatically;

(6) The equipment is equipped with a welding direction adjustment axis C-axis, which can switch between X-direction welding and Y-direction welding through control keys.

(7) The device is equipped with a portable handheld operating unit, which can access parts for device operation;

(8) The equipment is integrated with an abnormal welding process alarm display function, which enables real-time monitoring and monitoring of the equipment status;

(9) The device can store program settings of no less than 100 groups, and different parts can be set by calling the stored program settings, do automatic welding for different parts
